Power Supply Sink

The Power Supply Sink is controlled from the PC via a programmable bus interface to set the desired voltage, current or power.

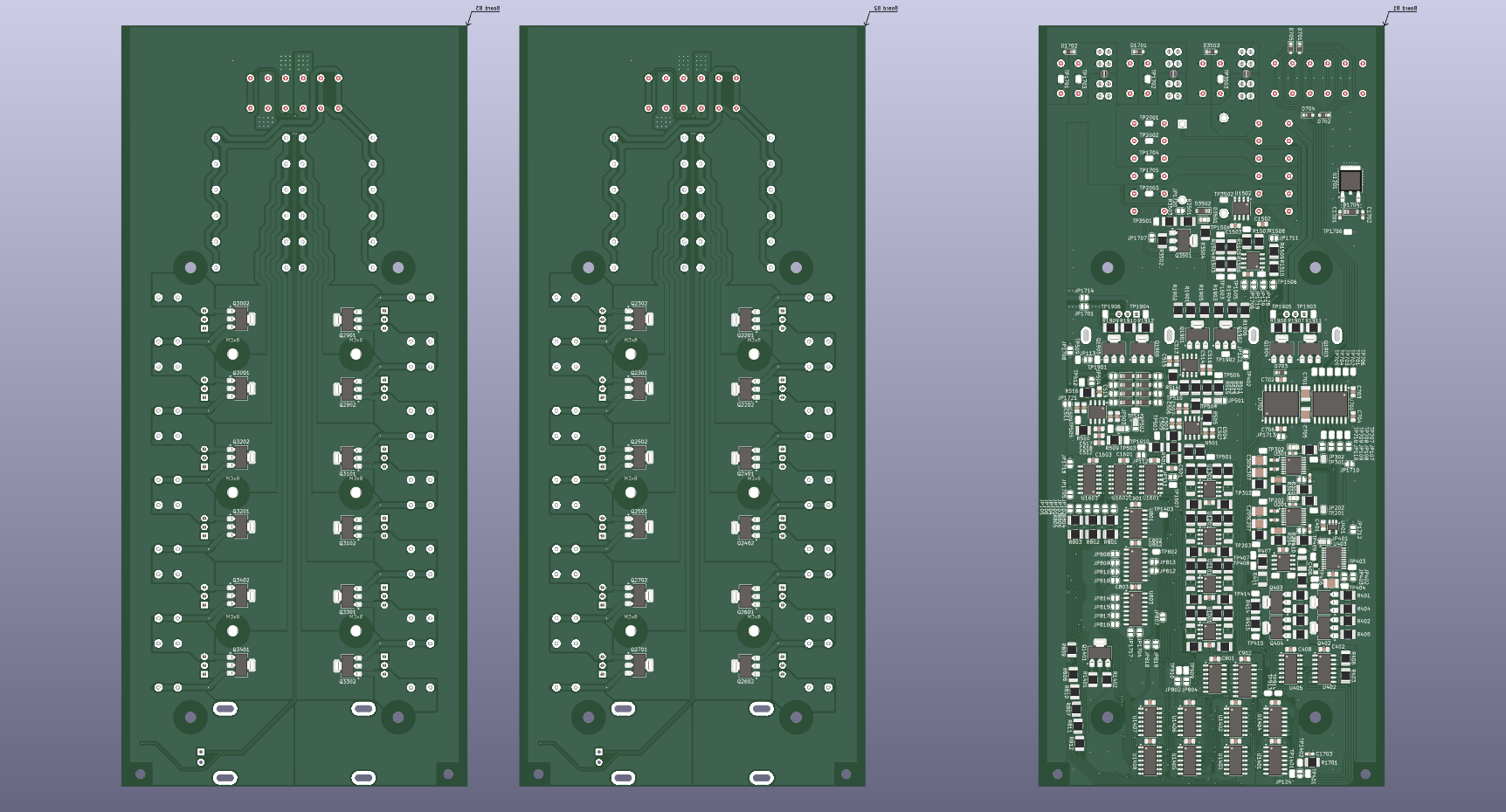

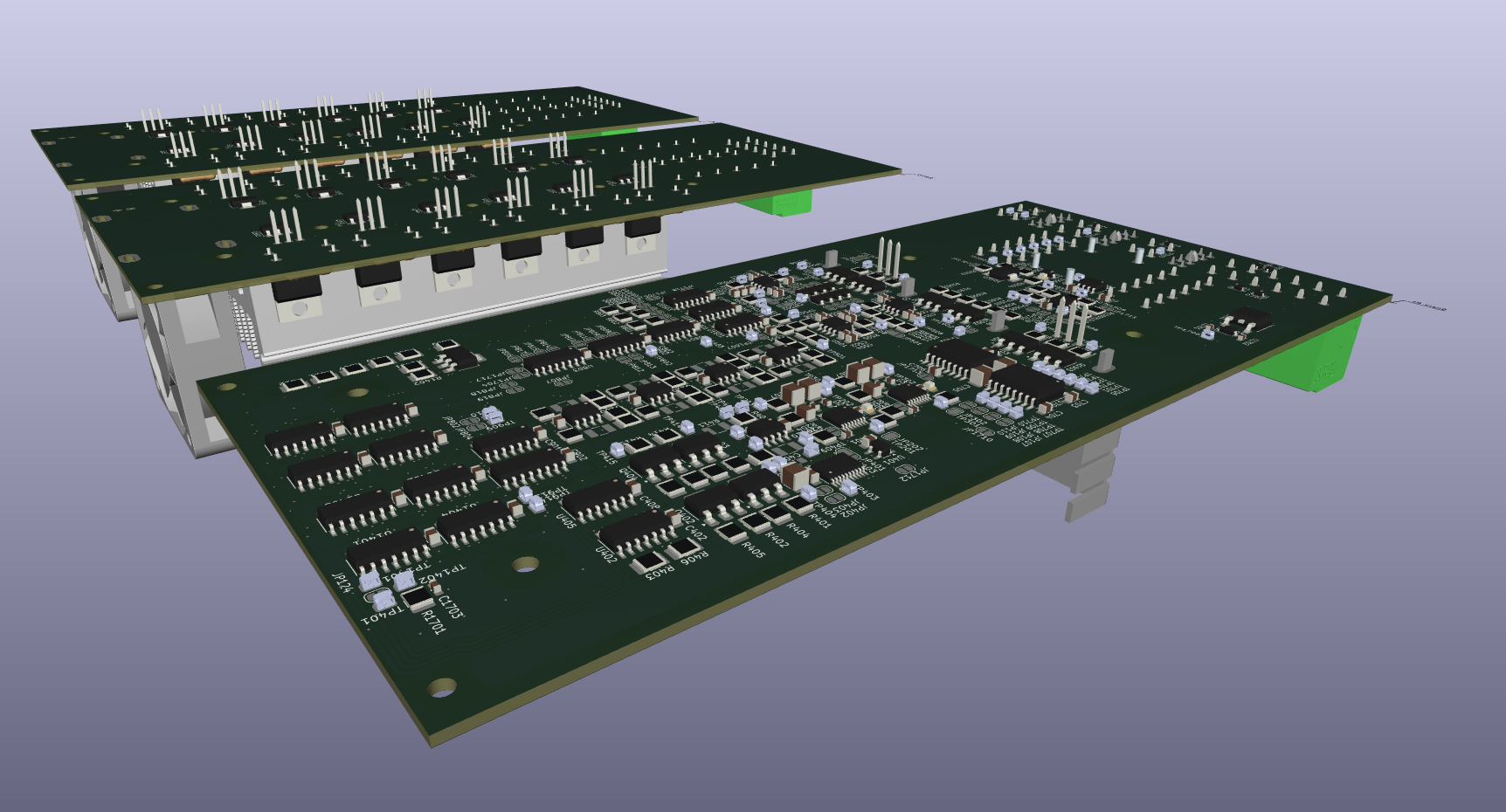

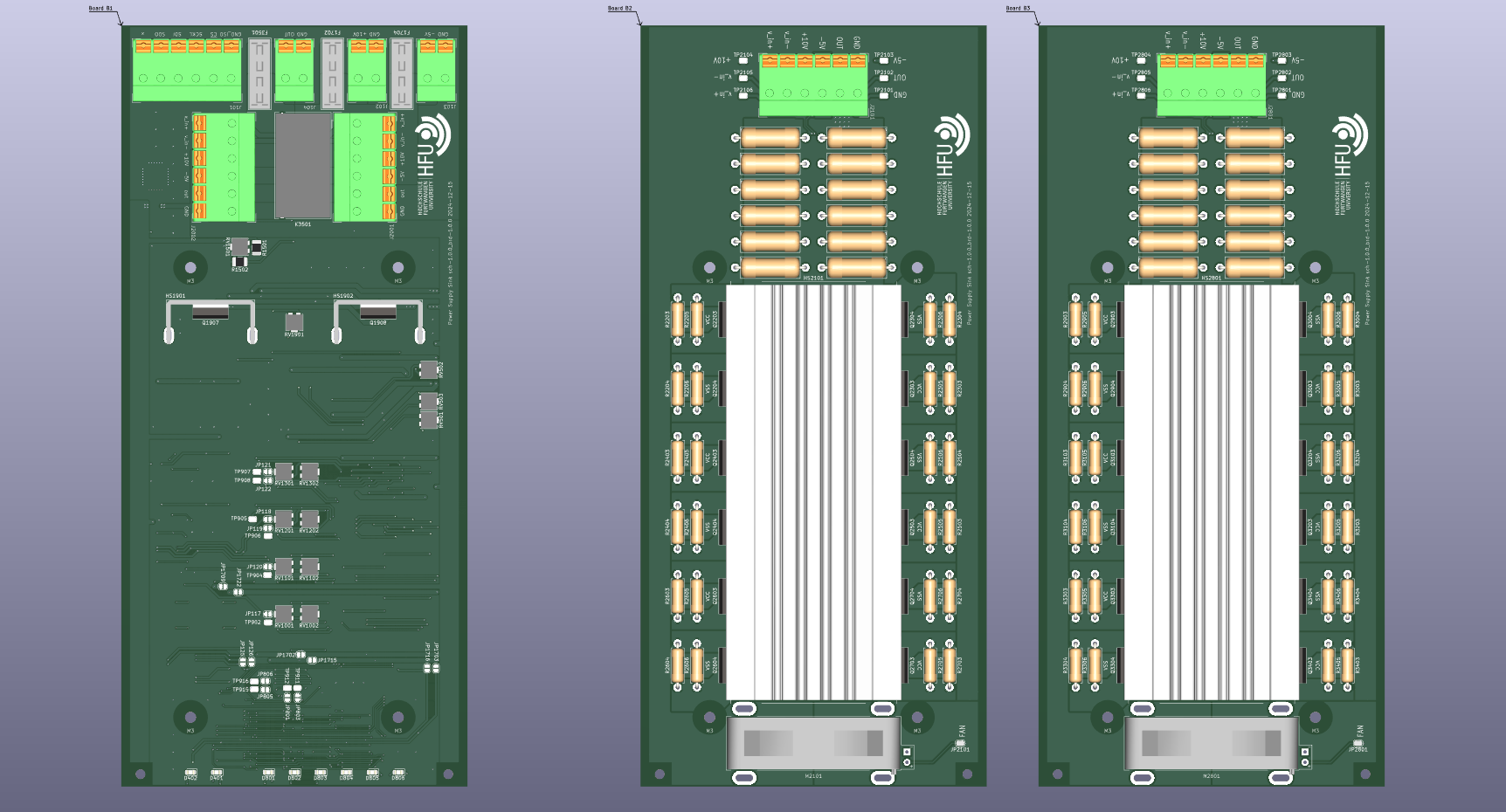

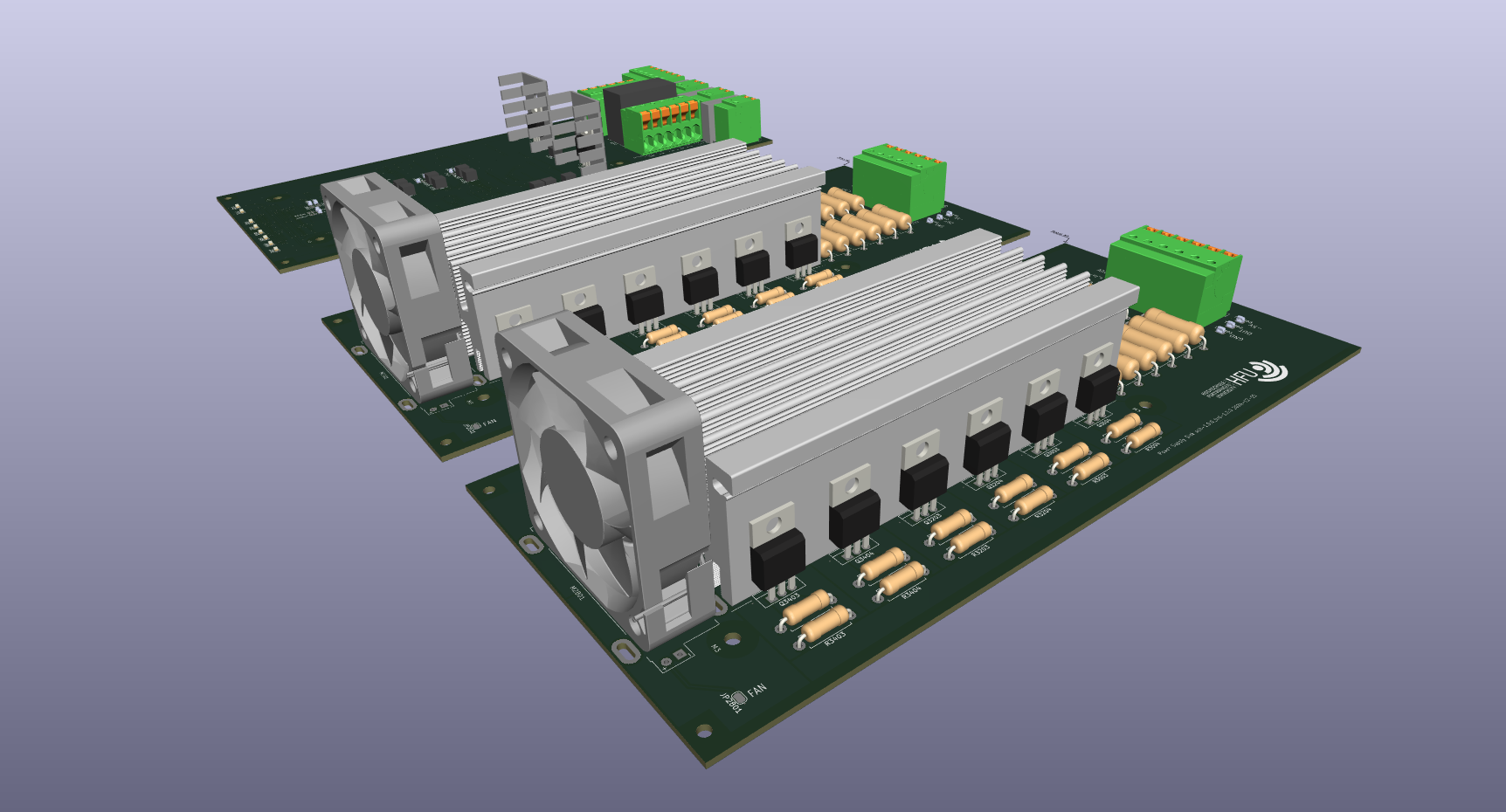

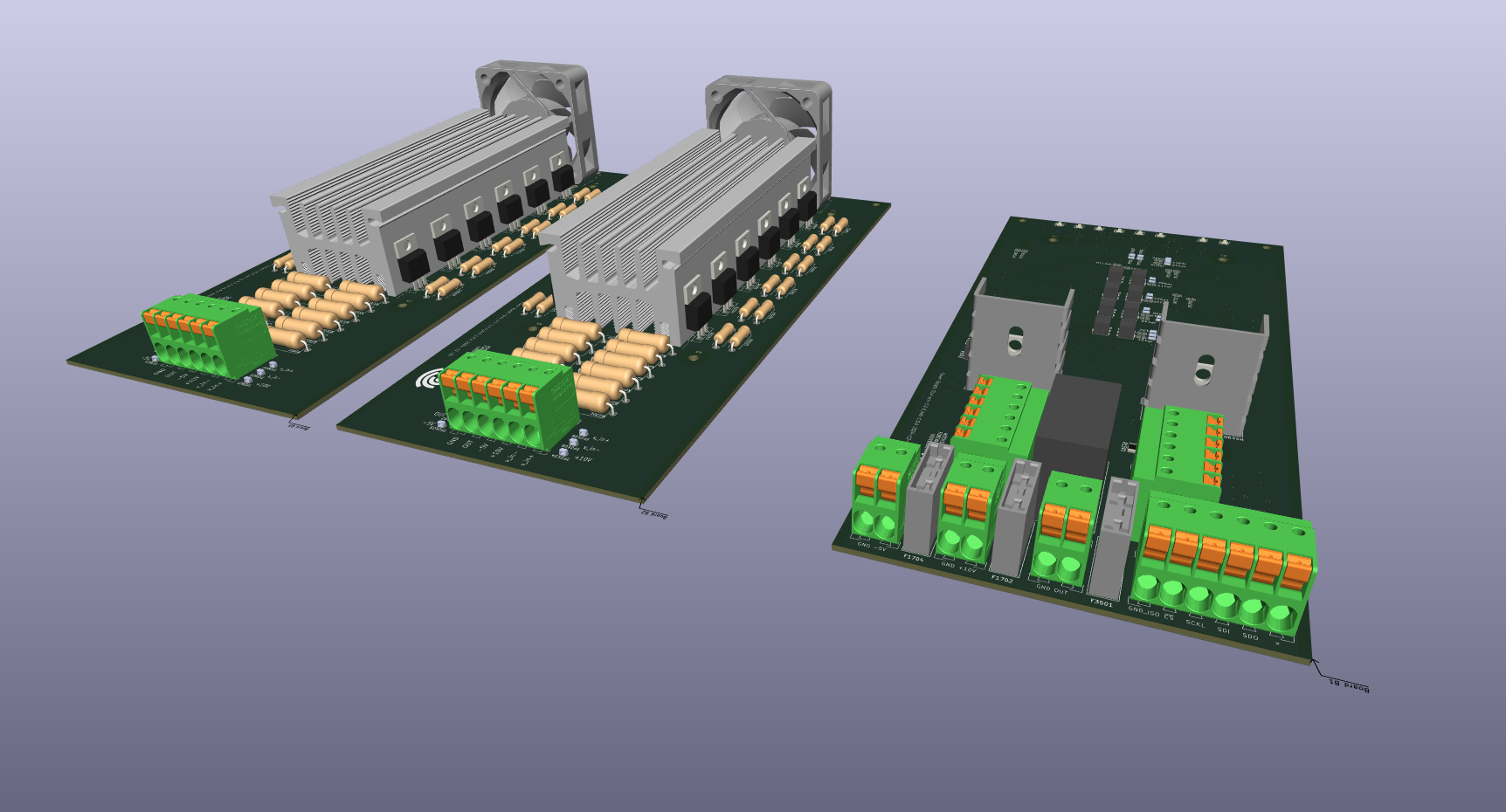

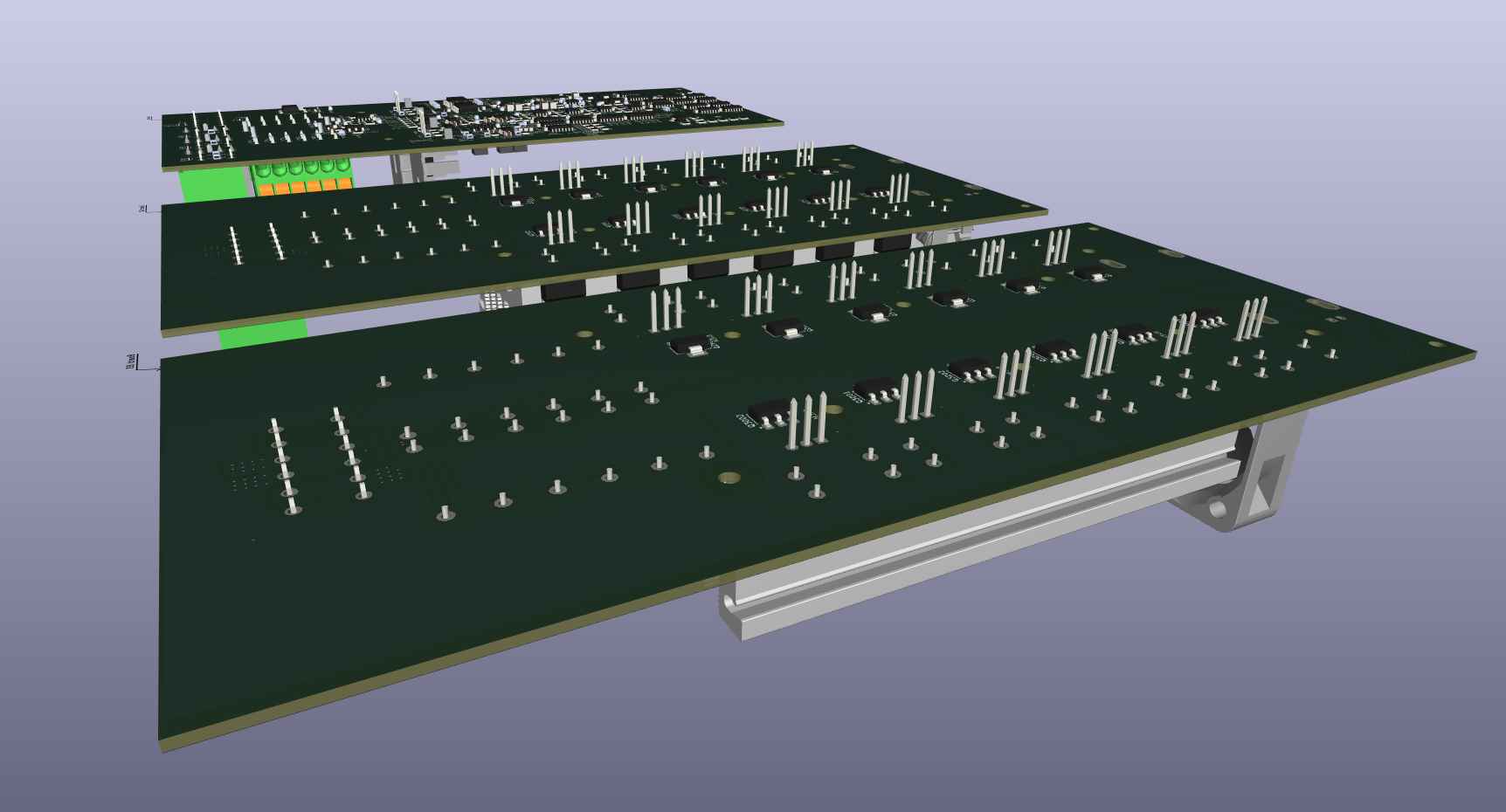

TOP BOT
img img
img img
img img

Interface & Requirements

  1. SPI Input Interface
    • digital with \(U \in [0V, 5V]\) relative to isolated ground GNDI isolation voltage max \(V_{iso} = 500V\)
      • !CS_ISO, input, chip select, low active
      • SCLK_ISO, input, serial clock CPHA=0, CPOL=0=SCKL
      • SDI_ISO, input, serial data in
      • SDO_ISO, output, serial data out
  2. Voltage output
    • \(U_{out} \in [0V, +5V]\)
    • \(I_{out} \in [-20A, +20A]\)
    • Short circuit I limit \(max(|I_{out}|) \leq |I_{max}| \leq |1.25 max(I_{out})|\)
  3. Supply Voltages
    • \(+10V\) @ \(260W\) (\(26A\))
    • \(-5V\) @ \(180W\) (\(26A\))

Supply Voltages

In order to achieve galvanic isolation the provided supply voltages must provide galvanic isolation. The pss output voltage is not isolated internally.

Circuit Selection and Design

SPI Configuration

The spi interface gives the possibility to

  1. Write configuration from the pc to the pss
  2. Read output voltage from the pss to the pc
  3. Read output current from the pss to the pc

Circuit

The overview of the interconnections is given in the block diagram below. The pc can program a configuration through the isolated spi digital interface. The configuration is converted to the analog domain by the DAC and fed through the multiplexer to the controller. The controller controls the power electronics to achieve the desired reference quantity at the output, which is measured by the output measurement. Depending on the configuration the output is connected to or disconnected from the load by the relay sub circuit. The measurements of the output measurement can also be read via the digital-interface.

The configuration and output measurements are used by the limit-logic to determine the control mode. (e.g. voltage control, upper current limit control, ...) The control mode is used to set the multiplexe to pass the correct voltage and current of the configuration to the controller and provide the appropriate measurement for the mode.

The power is provided by external isolated DC power supplies for the -5V and +10V rail. The +5V rail used for the measurements and analog configuration is generated internally.

Block Diagram

---
title: PSS Design
---
flowchart TB
pc[PC]
ext_power[10 V DC, -5 V DC]
bat[Battery]

subgraph pss[PSS]
    direction TB

    power[Power: 10V, 5V, -5V]
    dig_interface[Digital Inteface Isolated]
    conf[DAC Configuration]
    direction LR
    mux_ref[Multiplexer Reference]
    control[PID-Controller]
    subgraph pe[Power Electronic]
        bias[Bias Stage]
        outstage[Linear Power Amplifier]
    end
    meas[Output Measurement]
    mux_meas[Multiplexer Measurement]
    relay[Relay]

    subgraph limit[Limit-Logic]
        comp[Compare-Logic]
        mode-tran[Mode Transition]
    end

    adc[ADC Output Readback]
end

ext_power --> power
pc <--> dig_interface --> conf
meas --> adc --> dig_interface
conf --> mux_ref --> control --> bias --> outstage --> meas --> relay --> bat
meas --> mux_meas --> control
conf --> comp --> mode-tran
limit --> mux_meas
limit --> mux_ref
conf --> relay

Component Selection

Connector Terminal Blocks

Search on Mouser for terminal blocks TDPT 2,5/ 2-SP-5,08

  • Fixed Terminal Block
  • PCB mounting
  • Nominal current \(I \geq 30A\)
  • Wire gauge \(1.5mm^2 \leq A \leq 4mm^2\)
  • Push in type
  • Pitch \(5mm \leq d \leq 9mm\)
  • Sort by price
  • Prefer family of parts with different multiplicity of connectors available

Simulation

Simulation is available in ./pss.asc.

Hardware tests in Laboratory

Layout and Assembly Considerations

PCB Layout

Info

Detailed Layout Information available under ./layout.md.

  • Pull up/down for inputs, when stage is isolated, to run other tests.
  • Add disconnectors at outputs of sub circuits to obtain isolation for testing
  • Place bulky components on single side of board to allow for reflow soldering on both sides of pcb without use of adhesive glue

Assembly

  1. Pass tests for power
  2. Connect power for digital-interface and pass tests
  3. Connect power for conf, adc, adc1
  4. Pass tests for conf
  5. Pass tests for adc, adc1
  6. Connect power for relay and pass tests
  7. Connect power for measurement and pass tests
  8. Connect power for mux and pass tests
  9. Connect power for limit-logic and pass tests
  10. Connect power for control-var and pass tests
  11. Connect power for power-electronics and pass tests
  12. Connect Solderbridges
    • JP107 - JP110
    • JP117 - JP126
    • JP101 - JP106
    • JP111 - JP112
    • JP113
    • JP128 - JP129
  13. Pass tests for pss

Open Circuit Test

Test ID: v1.0.0/pss/open-circuit/<suffix>

Available suffix:

  • voltage-control0, voltage-control3, voltage-control5
  • lower-voltage-limit-control, upper-voltage-limit-control

  • Connections

    • Output disconnected (\(R \rightarrow \inf\))
    • SPI interface connected to pc
  • Power on supply voltage
  • Program Configuration with conf_output set
    • For suffix voltage-control0
      refselect=U, \(U=0V\), \(I=1A\), \(LVL=1V\), \(UVL=4V\), \(LCL=-10A\), \(UCL=10A\)
    • For suffix voltage-control3
      refselect=U, \(U=3V\), \(I=1A\), \(LVL=1V\), \(UVL=4V\), \(LCL=-10A\), \(UCL=10A\)
    • For suffix voltage-control5
      refselect=U, \(U=5V\), \(I=1A\), \(LVL=1V\), \(UVL=4V\), \(LCL=-10A\), \(UCL=10A\)
    • For suffix upper-voltage-limit-control
      refselect=I, \(U=3V\), \(I=1A\), \(LVL=1V\), \(UVL=4V\), \(LCL=-10A\), \(UCL=10A\)
    • For suffix lower-voltage-limit-control
      refselect=I, \(U=3V\), \(I=-1A\), \(LVL=1V\), \(UVL=4V\), \(LCL=-10A\), \(UCL=10A\)
  • Measure Voltages
    1. Output Voltage with multimeter \(U_{out,multi}\)
    2. Output Voltage with internal adc via spi \(U_{out,spi}\)
  • Power off supply voltage
  • Test passed if
    • For suffix voltage-control0
      \(U_{out,multi} \in U_{out,adc} \pm 100mV\) \(U_{out,multi} \in 0V \pm 100mV\)
    • For suffix voltage-control3
      \(U_{out,multi} \in U_{out,adc} \pm 100mV\) \(U_{out,multi} \in 3V \pm 100mV\)
    • For suffix voltage-control5
      \(U_{out,multi} \in U_{out,adc} \pm 100mV\) \(U_{out,multi} \in 5V \pm 100mV\)
    • For suffix upper-voltage-limit-control
      \(U_{out,multi} \in U_{out,adc} \pm 100mV\) \(U_{out,multi} \in 4V \pm 100mV\)
    • For suffix lower-voltage-limit-control
      \(U_{out,multi} \in U_{out,adc} \pm 100mV\) \(U_{out,multi} \in 1V \pm 100mV\)

Short Circuit Test

Test ID: v1.0.0/pss/short-circuit/<suffix>

Available suffix:

  • current-control0, current-control-20, current-control+20
  • lower-current-limit-control, upper-current-limit-control

  • Connections

    • Output short circuited to ground (\(R \rightarrow 0 \Omega\))
    • SPI interface connected to pc
  • Power on supply voltage
  • Program Configuration with conf_output set
    • For suffix current-control0
      refselect=I, \(U=2V\), \(I=0A\), \(LVL=0V\), \(UVL=4V\), \(LCL=-10A\), \(UCL=10A\)
    • For suffix current-control-20
      refselect=I, \(U=2V\), \(I=-20A\), \(LVL=0V\), \(UVL=4V\), \(LCL=-10A\), \(UCL=10A\)
    • For suffix current-control+20
      refselect=I, \(U=2V\), \(I=+20A\), \(LVL=0V\), \(UVL=4V\), \(LCL=-10A\), \(UCL=10A\)
    • For suffix lower-current-limit-control
      refselect=U, \(U=0V\), \(I=1A\), \(LVL=1V\), \(UVL=4V\), \(LCL=+1A\), \(UCL=+10A\)
    • For suffix upper-current-limit-control
      refselect=U, \(U=4V\), \(I=1A\), \(LVL=1V\), \(UVL=4V\), \(LCL=+1A\), \(UCL=+10A\)
  • Measure Current
    1. Output current with multimeter \(I_{out,multi}\)
    2. Output current with internal adc via spi \(I_{out,spi}\)
  • Power off supply voltage
  • Test passed if
    • For suffix current-control0
      \(I_{out,multi} \in I_{out,adc} \pm 1A\) \(I_{out,multi} \in 0A \pm 1A\)
    • For suffix current-control-20
      \(I_{out,multi} \in I_{out,adc} \pm 1A\) \(I_{out,multi} \in -20A \pm 1A\)
    • For suffix current-control+20
      \(I_{out,multi} \in I_{out,adc} \pm 1A\) \(I_{out,multi} \in +20A \pm 1A\)
    • For suffix lower-current-limit-control
      \(I_{out,multi} \in I_{out,adc} \pm 1A\) \(I_{out,multi} \in +1A \pm 1A\)
    • For suffix upper-current-limit-control
      \(I_{out,multi} \in I_{out,adc} \pm 1A\) \(I_{out,multi} \in +10A \pm 1A\)
